To accept payments for a photo booth kiosk running Breeze Kiosk you need to run the MDB Payment utility and Breeze Kiosk on the same computer.
Please note: To use the MDB Payment utility with Breeze Kiosk you need to be running Breeze Kiosk v2.1 or later.
The MDB Payment utility controls the Breeze Kiosk by sending "Payment accepted" or "Payment cancelled" commands to Breeze Kiosk.
The MDB Payment utility controls the kiosk by sending commands to Breeze Kiosk and communicates with the payment system via the MDB-USB interface.

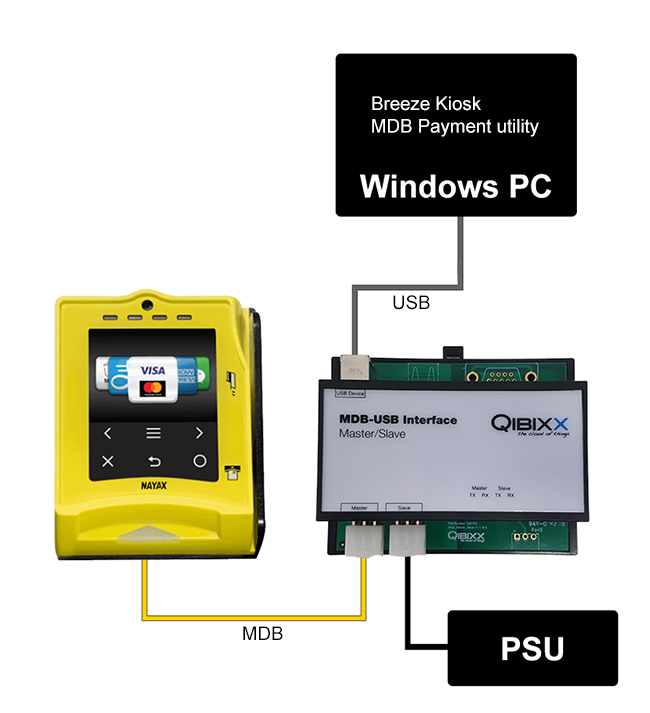

A typical payment system for a Windows based kiosk running Breeze Kiosk is shown below:
Authorization first example
When the card reader is set to authorization first the Breeze Kiosk enables the card reader when the users select print and then waits for the payment to be authorized before printing the photos.
Breeze Kiosk authorization first example
Selection first example
When the card reader is set to selection first the user selects print in Breeze Kiosk and it requests a payment from the card reader. The card reader displays the amount requested and asks the user to scan their credit card. When the payment is authorized the photos are printed.
Photo booth selection first example
